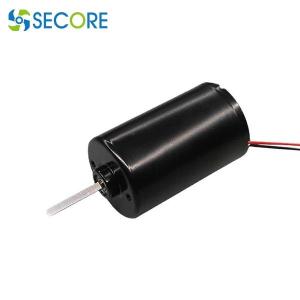

Small Size Brushless Dc Motor 24V Dual Shaft Bldc Motor 2847 For AR Glass

Name: Small Size Brushless Dc Motor 24V Dual Shaft Bldc Motor 2847 For AR Glass
Brand: SECORE
Price: 1 USD

China Small Size Brushless Dc Motor 24V Dual Shaft Bldc Motor 2847 For AR Glass wholesale

Brand Name : SECORE

Model Number : BLS-2847I

Certification : ISO9901

Place of Origin : Guangdong

MOQ : 500

Price : Negotiated The Price

Payment Terms : T/T, D/A

Supply Ability : 100000pcs per month

Delivery Time : 10-12 working days

Packaging Details : 50pcs per carton or as request

No-load Speed : 20500RPM or customized

Rated speed : 18000rpm or as per request

Rated Torque : 200g.cm

Continuous current : 1.3A

Motor Sizes : Φ28*47（mm）diameter*length

Construction : Permanent magnet

commutation : brushless, EC

Typical application : AG Glass, smart home

Contact Now

Small Size Pump Motor Brushless Dc Motor 24V Dual Shaft Bldc Motor 2847 For AR Glass

Performance and features Of Miniature inner rotor bldc motor

1. Multiple voltage option: 3~48V, 310V

2. Multiple speed options: 5-100000rpm

3. Torque: 0.05kg.cm~600kg.cm

4. Shaft: D shape, dual-D, key slot, knurled, screw, hobbing, shaft hole, shaft pin

5. Commutation: brush, brushless

6. Application: Office Equipments, Air Purification Systems, Water Treatment Systems, Medical Equipments, Logistic Transmission Systems, Mechanical Equipments, Solar Tracking Equipments.

MODEL	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY			STALL
MODEL	VOLTAGE	SPEED RPM	CURRENT A	SPEED RPM	TORQUE gf.cm	CURRENT A	TORQUE gf.cm	CURRENT A
BLS-2847I	24	3700	0.08	2800	200	0.65	820	1.6
BLS-2847I	32	20500	0.14	18050	200	1.3	1000	5.1

Motor dimensions
Small Size Brushless Dc Motor 24V Dual Shaft Bldc Motor 2847 For AR Glass

Performance curve

Typical Application

Small Size Brushless Dc Motor 24V Dual Shaft Bldc Motor 2847 For AR Glass

How to choose the most suitable motor?

Voltage: determines the working conditions of the motor application
Speed: RPM required to operate at rated voltage
Torque: how much N.m is needed under rated voltage, and how much N.m is needed when stopping operation
Size restrictions: the size of your installation space
Output shaft: can be customized according to different installation requirements, shaft diameter, length, threaded shaft, D shaft, double flat shaft, single flat shaft, spring shaft, keyway shaft, etc.
