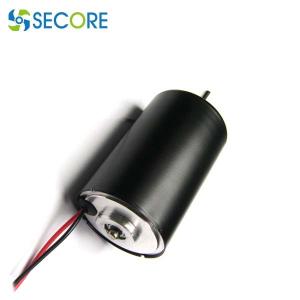

30W High Power 24VDC Brushless Motor Fan Bldc Motor For Ventilation Equipment

Name: 30W High Power 24VDC Brushless Motor Fan Bldc Motor For Ventilation Equipment
Brand: SECORE
Price: 1 USD

China 30W High Power 24VDC Brushless Motor Fan Bldc Motor For Ventilation Equipment wholesale

Brand Name : SECORE

Model Number : BLS-4266I

Certification : CE ROHS

Place of Origin : Dongguan

MOQ : 100

Price : Negotiated The Price

Payment Terms : T/T, D/A

Supply Ability : 100000pcs per month

Delivery Time : 8-10 working days

Packaging Details : 50pcs per carton or as request

Motor dimension : ∮42*L66（mm）

Speed rated : 2400 R/min

No load speed : 3200rpm

Rated Torque : 1000g.cm /1kg.cm

Rated current : 1.30A

Model number : BLS-4266I

Commutation : Ec commutating

Shaft OD : 5mm or customize

Type : 24 volt brushless dc motor, micro brushless motor

Typical application : conditioning damper actuator, car DVD, door lock

Contact Now

30W High Power 24VDC Brushless Motor Fan Bldc Motor For Ventilation Equipment BLDC Motor

Features of Micro BLDC Motor BLS-4266:

1. PWM speed adjust

2. FG output

3. Lock detect protection

4. Over current protection

5. Standby mode

6. Internal UVLO and thermal shutdown circuitry

MODEL	VOLTAGE	NO LOAD		AT MAXIMUM EFFICIENCY			STALL
MODEL	VOLTAGE	SPEED RPM	CURRENT A	SPEED RPM	TORQUE gf.cm	CURRENT A	TORQUE gf.cm	CURRENT A
BLS-4266I	24	3200	0.13	2400	1000	1.3	3980	4.8

Dimension of the bldc motor:

30W High Power 24VDC Brushless Motor Fan Bldc Motor For Ventilation Equipment

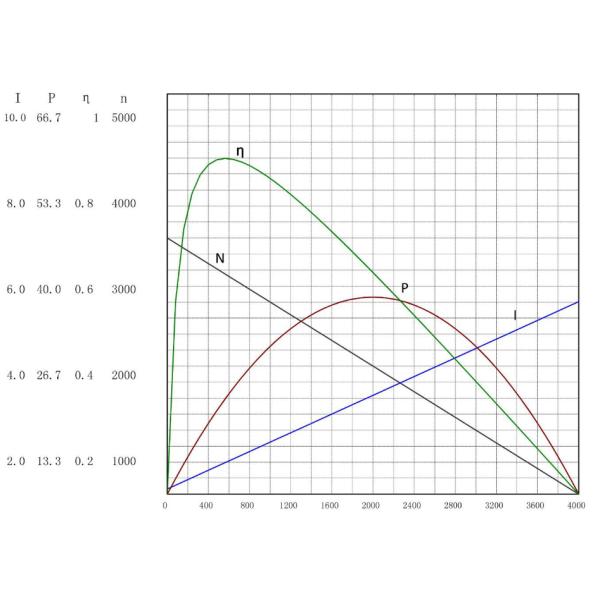

Performance curve:

Our services:

We provide one-stop solution for DC Motor / Gear motors, various diameter and power options ( 7mm to 92mm diameter for Brush motor, 16mm to 180mm diameter for BLDC motor. Power from 5W to 10000W ) for DC Micro Brush Motor, brushless and Gear Motor, Coreless motor.

Tiny Dc Motor, Electric Motor, Gear Motor, Mini Dc Motor, Brush Dc Motor, DC Brushless Motor, Worm gear motor, Spur Gear Motor, Micro Motor, planetary motor, Vibration Motor, coin motor Etc.

Customized parts:
