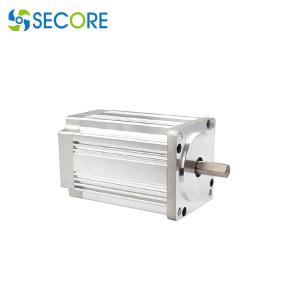

376W 310V High Torque Brushless Motor 3000rpm 20000h Continuous Running

Name: 376W 310V High Torque Brushless Motor 3000rpm 20000h Continuous Running
Brand: SECORE
Price: 1 USD

China 376W 310V High Torque Brushless Motor 3000rpm 20000h Continuous Running wholesale

Brand Name : SECORE

Model Number : BLS-80126

Certification : CE ROHS

Place of Origin : China,Guangdong

MOQ : 10

Price : Negotiated The Price

Payment Terms : T/T, D/A

Supply Ability : 100000pcs per month

Delivery Time : 7-10 working days

Packaging Details : 50pcs per carton or as request

Speed RPM : 3000 R/Min

Rated Power : 376W

Rated Torque : 1.2N.m

Rated Voltage : 310V

Dimension : ∮80*126 (mm）

Construction : pernanent magnet

Commutation : brushless

Origin : China

Product Type : high voltage 310V bldc motor

Typical application : automation equipment

Contact Now

High Torque 1.2Nm Brushless Motor, 310V 3000rpm BLDC motor With 20000h Continuous Running

Specifications :

1. Winding type: Star

2. Hall effect angle: 120 degree

3. Insulation Class: B

4. Ambient Temperature range: -20℃~+50℃

5. Insulation Resistance: 100MΩmIN 500VC DC

6. Dielectric Strength: 700V AC 1 minute

376W 310V High Torque Brushless Motor 3000rpm 20000h Continuous Running

Model	BLS-8086	BLS-80106	BLS-80126-430	BLS-80126-450	BLS-80126-630
Number of poles	4
Number of phases	3
Nominal voltage VDC	48	48	48	48	310
Rated speed rpm	3000	3000	3000	5000	3000
Rated torque N.m	0.4	0.7	1.2	1.2	1.2
Rated Current Amps	5	7	12	12	12
Output Power Watts	126	220	376	628	376
Peak Torque N.m	1.2	2.1	3	3	4.5
Peak Current Amps	15	21	36	36	63
Torque Constant N.m/A	0.11	0.11	0.11	0.11	0.72
Back EMF V/k RPM	4.52	4.52	4.52	4.52	55
Rotor inertia g.cm2	390	530	650	650	0.6
Body Length (L) mm	86	106	126	126	126
Gross weight KG	2	2.5	3	3	3

TO BE TAILORED

* Expected voltage types

* Configurable shaft length and second shaft end

* Extended temperature range

* Modified shaft dimensions and pinion configurations such as flats, gears, pulleys and eccenter

* Customization for high speed and or high load applications

* Customization for motors with increased electrical or mechanical tolerance requirement

If there is no suitable specifications, it can be customized according to actual needs.
